YS13N-Jinan Yousai Rigging Hardware Co., Ltd.,

YS13N

Model and technical parameter:

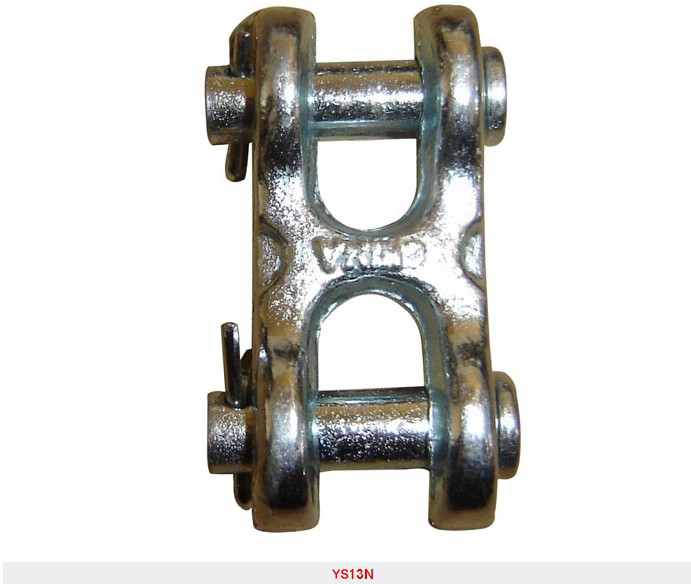

DOUBLE CLEVIS LINK
Drop forged carbon steel
Quenched and tempered ,with alloy pin

Product code Size (in) WLL（lbs） Weight
(lbs) Dimensions (in)

A B C D E F G

YS13N01 1/4 2600 0.44 0.50 0.75 0.50 0.31 0.38 0.75 .50

YS13N02 5/16-3/8 5400 0.81 0.56 1.00 0.63 0.44 0.47 1.00 1.81

YS13N03 7/16 7000 1.28 0.69 1.13 0.69 0.56 0.59 1.09 2.19

YS13N04 1/2 9200 1.68 0.81 1.25 0.75 0.63 0.66 1.25 2.47

YS13N05 5/8 17500 2.91 0.78 1.63 1.00 0.75 0.83 1.51 3.03
