Steel Wire Rope
STELL WIRE ROPE
Specification : pr-w-410d
18*7+FC and 19*7rotation resistant

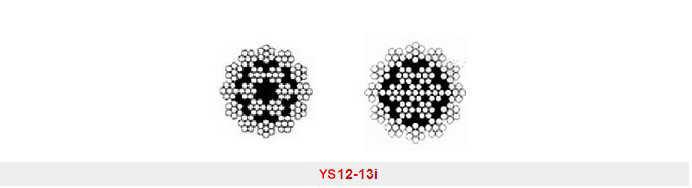

Cross sections |
Construction |
Product |
Rope diameter |
Approx. |
Nominal breaking |
|||
Nominal |
maximum |
FC |
WSC |
Uncoated |
Galx. |
|||
|
|
|
Ib/ft |
Ib |
Ib |
|||
|
Improved |
YS12I01 |
3/8 |
0.394 |
0.24 |
0.25 |
11180 |
10060 |
YS12I02 |
7/16 |
0.459 |
0.33 |
0.35 |
15160 |
13640 |
||
YS12I03 |
1/2 |
0.525 |
0.43 |
0.45 |
19700 |
17740 |
||
YS12I04 |
9/16 |
0.591 |
0.55 |
0.58 |
24800 |
22400 |
||
YS12I05 |
5/8 |
0.656 |
0.68 |
0.71 |
30600 |
27600 |
||
YS12I06 |
3/4 |
0.788 |
0.97 |
1.02 |
43600 |
39200 |
||
YS12I07 |
7/8 |
0.919 |
1.32 |
1.39 |
59000 |
53100 |
||
YS12I08 |
1 |
1.050 |
1.73 |
1.82 |
76600 |
69000 |
||
|
Extra |
YS13I01 |
3/8 |
0.394 |
0.24 |
0.25 |
12300 |
11080 |
YS13I02 |
7/16 |
0.459 |
0.33 |
0.35 |
16660 |
15000 |
||
YS13I03 |
1/2 |
0.525 |
0.43 |
0.45 |
21600 |
19440 |
||
YS13I04 |
9/16 |
0.591 |
0.55 |
0.58 |
27200 |
24400 |
||
YS13I05 |
5/8 |
0.656 |
0.68 |
0.71 |
33600 |
30200 |
||
YS13I06 |
3/4 |
0.788 |
0.97 |
1.02 |
48000 |
43200 |
||
YS13I07 |
7/8 |
0.919 |
1.32 |
1.39 |
65000 |
58500 |
||
YS13I08 |
1 |
1.050 |
1.73 |
1.82 |
84400 |
76000 |
