Steel Wire Rope

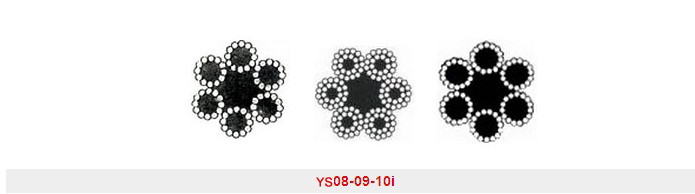

Cross sections |
Constructions |
Product code |
Rope diameter |
Maximum strand pitch |
Approx. |
Nominal breaking strength |
Acceptance breaking strength |
|
Nominal |
Maximum |
|||||||
Inch |
Inch |
|||||||
|
6×12+7FC |
YS08I01 |
1/4 |
0.265 |
1.813 |
0.07 |
3020 |
2940 |
YS08I02 |
5/16 |
0.328 |
2.281 |
0.10 |
4680 |
4560 |
||
YS08I03 |
3/8 |
0.394 |
2.719 |
0.15 |
6720 |
6560 |
||
YS08I04 |
7/16 |
0.459 |
3.188 |
0.20 |
9100 |
8880 |
||
YS08I05 |
1/2 |
0.525 |
3.625 |
0.26 |
11820 |
11520 |
||
YS08I06 |
9/16 |
0.591 |
4.063 |
0.33 |
14900 |
14520 |
||
YS08I07 |
5/8 |
0.656 |
4.531 |
0.41 |
18320 |
17860 |
||
YS08I08 |
3/4 |
0.788 |
5.438 |
0.59 |
26200 |
25600 |
||
|
6×24+7FC |
YS09I01 |
3/8 |
0.394 |
2.719 |
0.19 |
9540 |
9300 |
YS09I02 |
1/2 |
0.525 |
3.625 |
0.35 |
16800 |
16380 |
||
YS09I03 |
5/8 |
0.656 |
4.531 |
0.54 |
26000 |
25400 |
||
YS09I04 |
3/4 |
0.788 |
5.438 |
0.78 |
37200 |
36200 |
||
YS09I05 |
13/16 |
0.853 |
5.857 |
0.91 |
43600 |
42600 |
||
YS09I06 |
7/8 |
0.919 |
6.344 |
1.06 |
50400 |
49200 |
||
YS09I07 |
1 |
1.050 |
7.250 |
1.38 |
65600 |
64000 |
||
|
6×15+7FC |
YS10I01 |
3/8 |
0.394 |
2.719 |
0.14 |
6400 |
|
YS10I02 |
1/2 |
0.525 |
3.625 |
0.25 |
11400 |
|
||
YS10I03 |
9/16 |
0.591 |
4.063 |
0.32 |
15100 |
|
||
YS10I04 |
5/8 |
0.656 |
4.531 |
0.39 |
18700 |
|
||
YS10I05 |
3/4 |
0.788 |
5.438 |
0.56 |
26900 |
|
||
YS10I06 |
7/8 |
0.919 |
6.344 |
0.76 |
36300 |
|
