Gac Pvc Cable
|

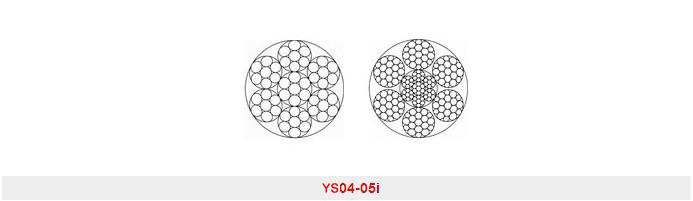

Cross sections |
construction |
Product |
Diameter (in) |
Weight |
Breaking |
|||
|
Inner |
Outer |
Inner |
Pvc coating |
Total ib |
||||
|
|
7×7PVC |
YS04I01 |
3/64 |
1/16 |
4.2 |
0.8 |
5.0 |
270 |
|
YS04I02 |
3/64 |
5/64 |
4.2 |
108 |
6.0 |
270 |
||
|
YS04I03 |
1/16 |
3/32 |
7.5 |
2.2 |
9.7 |
480 |
||
|
YS04I04 |
3/32 |
1/8 |
7.5 |
5.4 |
12.9 |
480 |
||
|
YS04I05 |
3/32 |
1/8 |
16.0 |
3.1 |
19.1 |
920 |
||
|
YS04I06 |
3/32 |
5/32 |
16.0 |
7.2 |
23.2 |
920 |
||
|
YS04I07 |
1/8 |
5/32 |
28.5 |
4.1 |
32.6 |
1700 |
||
|
YS04I08 |
1/8 |
3/16 |
28.5 |
9.0 |
37.5 |
1700 |
||
|
YS04I09 |
3/16 |
1/4 |
62.0 |
12.6 |
74.6 |
3700 |
||
|
YS04I010 |
3/16 |
5/16 |
62.0 |
28.8 |
90.8 |
3700 |
||
|
|
7×19PVC |
YS05I01 |
3/32 |
1/8 |
17.4 |
3.2 |
20.6 |
1000 |
|
YS05I02 |
3/32 |
5/32 |
17.4 |
7.2 |
24.6 |
1000 |
||
|
YS05I03 |
1/8 |
5/32 |
29.0 |
4.1 |
33.1 |
2000 |
||
|
YS05I04 |
1/8 |
3/16 |
29.0 |
9.0 |
38.0 |
2000 |
||
|
YS05I05 |
5/32 |
7/32 |
45.0 |
10.8 |
55.8 |
2800 |
||
|
YS05I06 |
5/32 |
9/32 |
45.0 |
25.1 |
70.1 |
2800 |
||
|
YS05I07 |
3/16 |
1/4 |
65.0 |
12.6 |
77.6 |
4200 |
||
|
YS05I08 |
3/16 |
5/16 |
650.0 |
28.8 |
93.8 |
4200 |
||
|
YS05I09 |
1/4 |
5/16 |
110.0 |
16.2 |
126.2 |
7000 |
||
|
YS05I010 |
1/4 |
3/8 |
110.0 |
35.9 |
145.9 |
7000 |
||
|
YS05I011 |
5/16 |
3/8 |
173.0 |
19.8 |
192.8 |
9800 |
||
|
YS05I012 |
5/16 |
7/16 |
173.0 |
43.1 |
216.1 |
9800 |
||
|
YS05I013 |
3/8 |
7/16 |
243.0 |
23.3 |
266.3 |
14400 |
||
|
YS05I014 |
3/8 |
1/2 |
243.0 |
50.3 |
293.3 |
14400 |
||
