Galv. Aircraft Cable (Not For Aircraft Use )
Specification: mil-w-83420D/mil-w-1511A
Improved plow steel
|

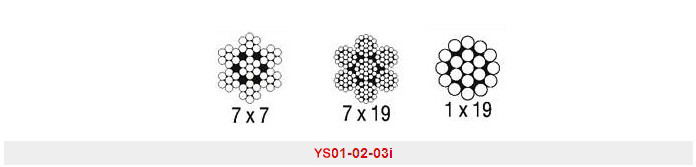

Cross sections |
construction |
Production |
Nominal |
Tolerance |
Approx. |
Min. breaking |
|
|
Galv |
Stainless |
||||||
|
Ib |
Ib |
||||||
|
|
7×7 |
YS01I01 |
3/64 |
0.008 |
4.2 |
270 |
270 |
|
YS01I02 |
1/16 |
0.010 |
7.5 |
480 |
480 |
||
|
YS01I03 |
3/32 |
0.012 |
16.0 |
920 |
920 |
||
|
YS01I04 |
1/8 |
0.014 |
28.5 |
1700 |
1700 |
||
|
YS01I05 |
5/32 |
0.016 |
43.0 |
2600 |
2400 |
||
|
YS01I06 |
3/16 |
0.018 |
62.0 |
3700 |
3700 |
||
|
YS01I07 |
1/4 |
0.018 |
106.0 |
6100 |
6100 |
||
|
YS01I08 |
5/16 |
0.022 |
167.0 |
9200 |
9000 |
||
|
YS01I09 |
3/8 |
0.026 |
236.0 |
13300 |
12600 |
||
|
|
7×19 |
YS02I01 |
3/32 |
0.012 |
17.4 |
1000 |
920 |
|
YS02I02 |
1/8 |
0.014 |
29.0 |
2000 |
1760 |
||
|
YS02I03 |
5/32 |
0.016 |
45.0 |
2800 |
2400 |
||
|
YS02I04 |
3/16 |
0.018 |
65.0 |
4200 |
3700 |
||
|
YS02I05 |
7/32 |
0.018 |
86.0 |
5600 |
5000 |
||
|
YS02I06 |
1/4 |
0.018 |
110.0 |
7000 |
6400 |
||
|
YS02I07 |
9/32 |
0.020 |
139.0 |
8000 |
7800 |
||
|
YS02I08 |
5/16 |
0.022 |
173.0 |
9800 |
9000 |
||
|
YS02I09 |
3/8 |
0.026 |
243.0 |
14400 |
12000 |
||
|
|
1×19 |
YS03I01 |
1/16 |
0.010 |
8.5 |
500 |
500 |
|
YS03I02 |
3/32 |
0.012 |
20.0 |
1200 |
1200 |
||
|
YS03I03 |
1/8 |
0.014 |
35.0 |
2100 |
2100 |
||
|
YS03I04 |
5/32 |
0.016 |
55.0 |
3300 |
3300 |
||
|
YS03I05 |
3/16 |
0.018 |
77.0 |
4700 |
4700 |
||
|
YS03I06 |
1/4 |
0.018 |
135.0 |
8200 |
8200 |
||
|
YS03I07 |
5/16 |
0.022 |
210.0 |
12500 |
12500 |
||
|
YS03I08 |
3/8 |
0.026 |
3000.0 |
18000 |
18000 |
||
