YS09H-Jinan Yousai Rigging Hardware Co., Ltd.,

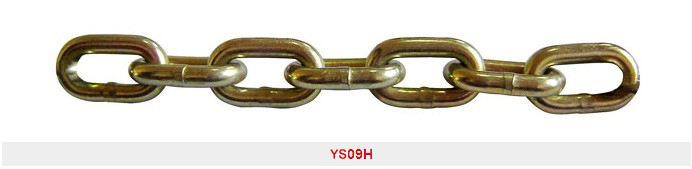

YS09H

Model and technical parameter:

Transport Chain Nacm96 (G70)

Product
Code Nominal
Size Material
Diameter Working
Load Limit Proof Test
(min.) Breaking
Force Min Inside
length Inside
Width

mm in mm in kg Ibg kn Ibs kn Ibs mm in kg Ibg

YS09H01 7.0 1/4 7.0 0.281 1430 3150 28.0 6300 56.0 12600 31.8 1.24 9.8 0.38

YS09H02 8.7 5/16 8.7 0.343 2130 4700 41.8 9400 83.6 83.6 32.8 1.29 11.2 0.44

YS09H03 10.0 3/8 10.3 0.406 2990 2990 58.7 13200 117.4 117.4 35.0 1.38 14.0 0.55

CONTACT

-——

Subscribe Our Newsletter To Get Latest Update And News

Subscribe Now

Jinan Yousai Rigging Hardware Co., Ltd., is a professional production factory, operating rigging series of hardware products, export-oriented enterprises in the beautiful coastal city of Qingdao, which known as the hometown of rigging reputation.

PRODUCT

-——

CONTACT

-——

No.173 Fangou Street, Shantou Town, Boshan District, Zibo City

0531-66582296

Joseph@yousairigging.com

Skype : yousairigging

SITEMAP | copyright | Jinan Yousai Rigging Hardware Co., Ltd., |

0531-66582296

Product Code	Nominal Size		Material Diameter		Working Load Limit		Proof Test (min.)		Breaking Force Min		Inside length		Inside Width
Product Code	mm	in	mm	in	kg	Ibg	kn	Ibs	kn	Ibs	mm	in	kg	Ibg
YS09H01	7.0	1/4	7.0	0.281	1430	3150	28.0	6300	56.0	12600	31.8	1.24	9.8	0.38
YS09H02	8.7	5/16	8.7	0.343	2130	4700	41.8	9400	83.6	83.6	32.8	1.29	11.2	0.44
YS09H03	10.0	3/8	10.3	0.406	2990	2990	58.7	13200	117.4	117.4	35.0	1.38	14.0	0.55
