YS06H-Jinan Yousai Rigging Hardware Co., Ltd.,

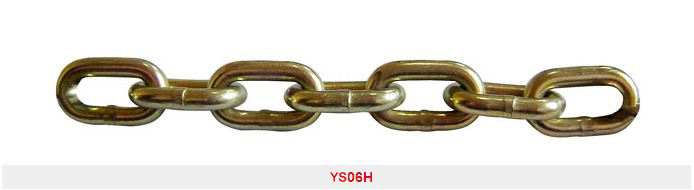

YS06H

Model and technical parameter:

Transport Chain Nacm84/90(G70)

Product
Code Nominal
Size Working
Load Limit
(max) Proof Load
(min) Min.
Breaking
Load Weight
Per 100’ Inside length
(max) Inside Width
(min)

inches mm kg lb kn lb kn lb kg lb mm Inches mm Inches

YS06H01 1/4 7.0 1,430 3,150 27.0 6,100 53.9 12,100 30.0 66.1 31.5 1.24 9.8 0.38

YS06H02 5/16 8.7 2,130 4,700 41.6 9,400 83.5 18,800 47 104 32.8 1.29 11.2 0.44

YS06H03 3/8 10.0 2,990 6,600 55.0 12,400 110.0 24,700 64.5 142 35.0 1.38 14.0 0.55
