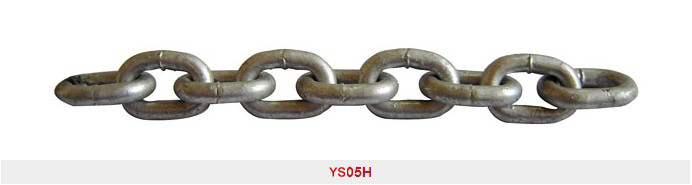

High Test Chain Nacm84/90(G43)
|
Product Code |
Nominal Size |
Working Load Limit (max) |
Proof Load (min) |
Min. Breaking Load |
Weight Per 100’ |
Inside length (max) |
Inside Width (min) |
|||||||
| inches | mm | kg | lb | kn | lb | kn | lb | kg | lb | mm | Inches | mm | Inches | |
| YS05H01 | 1/4 | 7.0 | 1,180 | 2,600 | 16.6 | 3,750 | 33.1 | 7,500 | 30.0 | 66.1 | 31.5 | 1.24 | 9.8 | 0.38 |
| YS05H02 | 5/16 | 8.0 | 1,770 | 3,900 | 21.6 | 4,900 | 43.2 | 9,700 | 39.0 | 86.0 | 32.8 | 1.29 | 11.2 | 0.44 |
| YS05H03 | 3/8 | 10.0 | 2,450 | 5,400 | 33.0 | 7,600 | 67.6 | 15,200 | 67.3 | 148 | 35.0 | 1.38 | 14.0 | 0.55 |
| YS05H04 | 1/2 | 13.0 | 4,170 | 9,200 | 57.1 | 12,900 | 114.2 | 25,700 | 110 | 242 | 45.5 | 1.79 | 18.2 |
0.72 |
