Model and technical parameter:

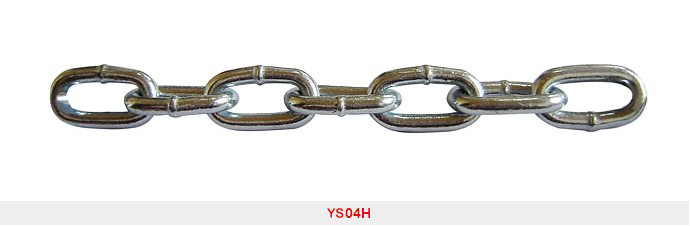

Proof Coil Chain Nacm84(G30)
Product
Code
Nominal Size
Working Load
Limit(max)
Proof Load
(min)
Min.
Breaking
Load
Weight
Per 100’
Inside length
(max)
Inside Width
(min)
inches
mm
kg
lb
kn
lb
kn
lb
kg
lb
mm
Inches
mm
Inches
YS04H01
1/8
4.0
170
375
3.6
800
7.1
1,600
9.0
19.8
23.9
0.94
6.4
0.25
YS04H02
3/16
5.5
365
800
7.2
1,600
14.3
3,200
18.3
40.3
24.8
0.98
7.7
0.30
YS04H03
1/4
7.0
580
1,300
11.6
2,600
23.1
5,200
30.0
66.1
31.5
1.24
9.8
0.38
YS04H04
5/16
8.0
860
1,900
15.1
3,400
30.2
6,800
39.0
86.0
32.8
1.29
11.2
0.44
YS04H05
3/8
10.0
1,200
2,650
23.6
5,300
47.1
10,600
64.5
142
35.0
1.38
14.0
0.55
YS04H06
1/2
13.0
2,030
4,500
39.8
8,950
79.6
17,900
110
242
45.5
1.79
18.2
0.72
YS04H07
5/8
16.0
3,130
6,900
60.3
13,600
120.6
27,200
162
357
56.0
2.2
20.0
0.79
YS04H08
3/4
20.0
4,800
10,300
94.3
21,200
188.5
42,400
254
560
70.0
2.76
25.0
0.98
YS04H09
7/8
22.0
5,810
12,800
114.1
25,600
228.1
51,200
3.6
675
77.0
3.03
27.5
1.03
YS04H10
1
26.0
8,140
17,900
159.1
35,800
318.2
71,600
419
924
90.9
3.58
31.7
1.25
