YS03H-Jinan Yousai Rigging Hardware Co., Ltd.,

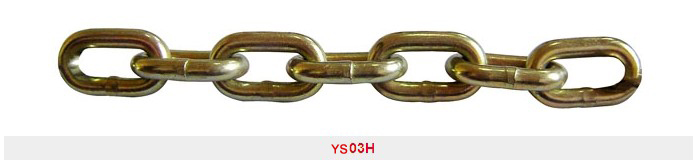

YS03H

Model and technical parameter:

Transport Chain Astm80(G70)

Product
Code Nominal Size Working
Load Limit
(max) Proof Load
(min) Min.
Breaking
Load Weight
Per 100’ Inside length
(max) Inside Width
(min)

inches mm kg lb kn lb kn lb kg lb mm Inches mm Inches

YS03H01 1/4 7.1 1,430 3,150 27，8 6,300 56.0 12,600 34.0 75 21.8 0.86 11.4 0.45

YS03H02 5/16 8.7 2,130 4,700 41，8 9,400 83.6 18,800 50.4 111 25.6 1.01 11.7 0.46

YS03H03 3/8 10.3 2,990 6,600 58，7 13,200 117.4 26,400 71.0 156 30.2 1.19 14.0 0.55
