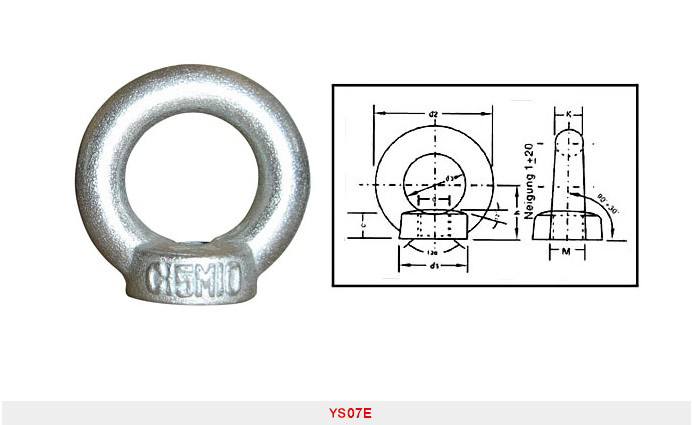

DIN582 Ringr Nut
Product |
Size |
W.L.L |
Dimensions(mm) |
Weight |
|||||
d1 |
d2 |
d3 |
e |
h |
k |
||||
YS07E01 |
M6 |
0.07 |
20 |
36 |
20 |
8.5 |
18 |
8 |
0.05 |
YS07E02 |
M8 |
0.14 |
20 |
36 |
20 |
8.5 |
18 |
8 |
0.05 |
YS07E03 |
M10 |
0.23 |
25 |
45 |
25 |
10 |
22 |
10 |
0.09 |
YS07E04 |
M12 |
0.34 |
30 |
54 |
30 |
11 |
26 |
12 |
0.16 |
YS07E05 |
M16 |
0.7 |
35 |
63 |
35 |
13 |
30 |
14 |
0.24 |
YS07E06 |
M20 |
1.2 |
40 |
72 |
40 |
16 |
35 |
16 |
0.36 |
YS07E07 |
M22 |
1.5 |
45 |
81 |
45 |
18 |
40 |
18 |
0.58 |
YS07E08 |
M24 |
1.8 |
50 |
90 |
50 |
20 |
45 |
20 |
0.72 |
YS07E09 |
M27 |
2.5 |
50 |
90 |
50 |
20 |
45 |
20 |
0.7 |
YS07E10 |
M30 |
3.6 |
65 |
108 |
60 |
25 |
55 |
24 |
1.32 |
YS07E11 |
M33 |
4.3 |
65 |
108 |
60 |
25 |
55 |
24 |
1.3 |
YS07E12 |
M36 |
5.1 |
75 |
126 |
70 |
30 |
65 |
28 |
2.08 |
YS07E13 |
M39 |
6.1 |
75 |
126 |
70 |
30 |
65 |
28 |
2.02 |
