Model and technical parameter:

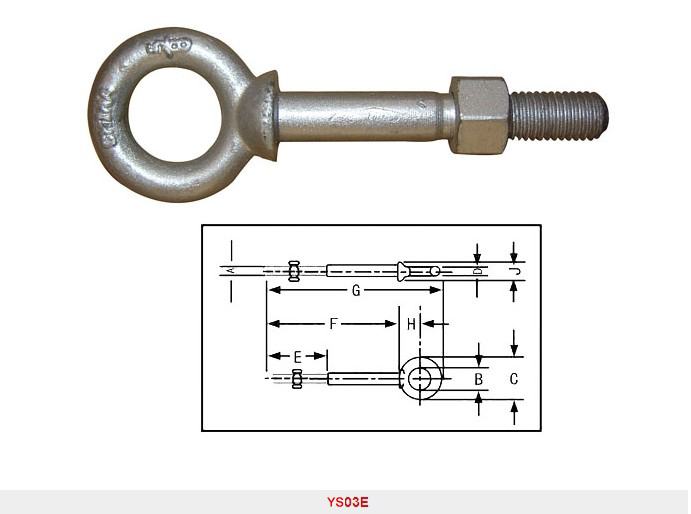

Shoulder Nut Eye Bolts G -277
Product Code
Size
(inch)
Dimensions(in)
Weight Each
(kg／pc)
W．L．L (Lbs)
A
B
C
D
E
F
G
H
J
YS03E01
1/4×2
650
0.25
0.5
0.88
0.19
1.5
2
2.94
0.5
0.47
0.030
YS03E02
1/4×4
650
0.25
0.5
0.88
0.l9
2.5
4
4.94
0.5
0.47
0.041
YS03E03
5/16×2-1/4
1200
0.31
0.62
1.12
0.25
1.5
2.25
3.5
0.69
0.56
0.057
YS03E04
5/16×4-1/4
1200
0.3l
0.62
1.12
0.25
2.5
4.25
5.5
0.69
0.56
0.085
YS03E05
3/8×2-1/2
1550
0.38
0.75
1.38
0.31
1.5
2.5
3.97
0.78
0.66
0.097
YS03E06
3/8×4-1/2
1550
0.38
0.75
1.38
0.31
2.5
4.5
5.97
0.78
0.66
0.115
YS03E07
1/2×3-1/4
2600
0.5
1
1.75
0.38
1.5
3.25
512
1
0.91
0.194
YS03E08
1/2×6
2600
0.5
1
1.75
0.38
3
6
7.88
1
0.91
0.258
YS03E09
5/8×4
5200
0.62
1.25
2.25
0.5
2
4
6.44
1.31
1.12
0.312
YS03E10
5/8×6
5200
0.62
1.25
2.25
0.5
3
6
8,44
1.31
1.12
0.465
YS03Ell
3/4×4-1/2
7200
0.75
1.5
2.75
0.62
2
4.5
7.44
1.56
1.38
0.657
YS03E12
3/4×6
7200
0.75
1.5
2.75
0.62
3
6
8.94
1.56
1.38
0.761
YS03E13
7/8×5
10600
0.88
1.75
3.25
0.75
2.5
5
8.46
1.84
1.56
1.023
YS03E14
1×6
13300
1
2
3.75
0.88
3
6
9.97
2.09
1.81
1.665
YS03E15
1×9
13300
1
2
3.75
0.88
4
9
12.97
2.09
1.81
1.920
YS03El6
1-1/4×8
21000
1.25
2.5
4.5
1
4
8
12.72
2.47
2.28
2.955
YS03E17
1-1/4×12
21000
1.25
2.5
4.5
1
4
12
16.72
2.47
2.28
3.614
YS03E18
1-1/2×15
24000
1.5
3
5.5
1.25
6
15
20.75
3
2.75
6.477
