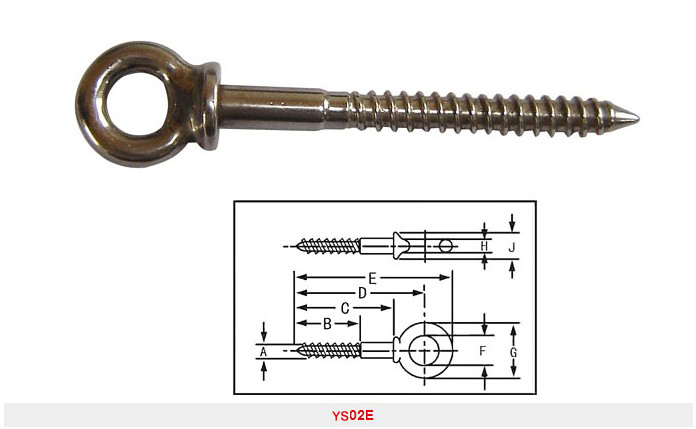

Screw Eye Bye G-275
| Product Code |
Shank Dia．&Length (in) |
Dimensions(in) |
Weight Each (kg／pc) |
|||||||||
| A | B | C | D | E | F | G | H | J | ||||
| YS02E01 | 1/4×2 | 0.25 | 1.50 | 2.00 | 2.50 | 2.94 | 0.50 | 0.88 | 0.19 | 0.47 | 0.020 | |
| YS02E02 | 5/16×2-1/4 | 0.31 | 1.69 | 2.25 | 2.94 | 3.50 | 0.63 | 1.13 | 0.25 | 0.56 | 0.045 | |
| YS02E03 | 3/8×2-1/2 | 0.38 | 1.88 | 2.50 | 3.28 | 3.97 | 0.75 | 1.38 | 0.3l | 0.66 | 0.086 | |
| YS02E04 | 1/2×3-1/4 | 0.50 | 2.44 | 3.25 | 4.25 | 5.12 | 1.OO | 1.75 | 0.38 | 0.9l | 0.170 | |
| YS02E05 | 5/8×4 | 0.63 | 3.00 | 4.00 | 5.31 | 6.44 | 1.25 | 2.25 | 0.50 | 1.12 |
0.389 |
|
