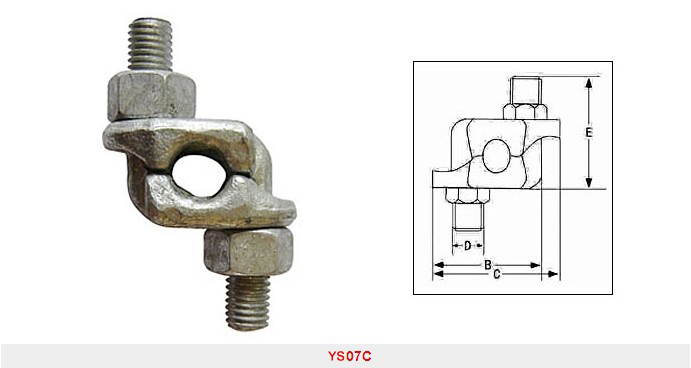

U.S.Type Dror Forged Fist Drip Clips
Product Code | Rope Size (in) | Dimensions(in) | ||||
A | B | C | D | E | ||
YS07C01 | 3/16-1/4 | 6.35 | 31.75 | 37.3 | 9.65 | 32.5 |
YS07C02 | 5/16 | 7.78 | 34.04 | 39.69 | 9.65 | 37.34 |
YS07C03 | 3/8 | 9.65 | 40.39 | 47.63 | 11.18 | 45.97 |
YS07C04 | 7/16 | 12.7 | 47.75 | 55.56 | 12.7 | 55.6 |
YS07C05 | 1/2 | 12.7 | 47.75 | 55.56 | 12.7 | 55.6 |
YS07C06 | 9/16 | 16 | 57.9 | 66.68 | 16 | 68.33 |
YS07C07 | 5/8 | 16 | 57.9 | 66.68 | 16 | 68.33 |
YS07C08 | 3/4 | 19.05 | 68.33 | 77.79 | 19.05 | 74.68 |
YS07C09 | 7/8 | 22.35 | 75.44 | 79.38 | 19.05 | 84.07 |
YS07C10 | 1 | 25.4 | 78.23 | 89.69 | 19.05 | 94.5 |
YS07C11 | 1-1/8 | 28.7 | 87.38 | 99.22 | 22.35 | 106.17 |
YS07C12 | 1-1/4 | 31.75 | 90.42 | 102.3 | 22.35 | 107.95 |
YS07C13 | 1-3/8 | 38.1 | 104.9 | 118.27 | 25.4 | 141.22 |
YS07C14 | 1-1/2 | 38.1 | 104.9 | 118.27 | 25.4 |
141.22 |
