YS03C

Model and technical parameter:

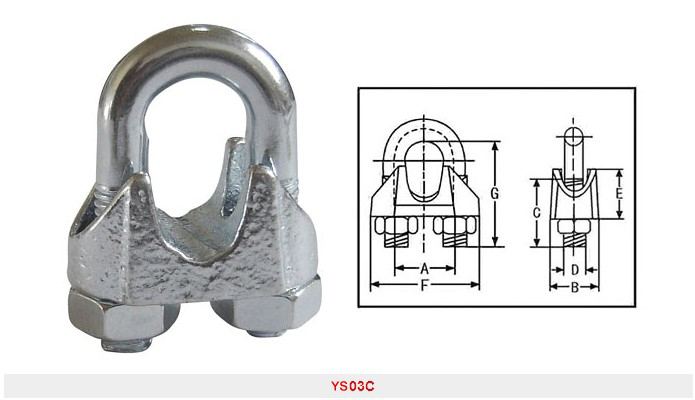

Din741Galv Malleable Wire Rope Clips

Product Code Size(mm) Dimensions(in) Weight Each (Kg/pc)

A B C D F G

YS03C01 3 9 10 12 4 21 20 0.014

YS03C02 5 11 11 13 5 23 24 0.015

YS03C03 6.5 13 12 15 5 26 28 0.021

YS03C04 8 16 14 19 6 30 34 0.041

YS03C05 10 19 18 22 8 34 42 0.068

YS03C06 11 20 19 22 8 36 54 0.072

YS03C07 13 24 23 30 10 42 55 0.13

YS03C08 14 25 23 30 10 44 57 0.135

YS03C09 16 29 26 33 12 50 63 0.210

YS03C10 19 32 29 38 12 54 75 0.280

YS03C11 22 37 33 44 14 61 85 0.400

YS03C12 26 41 35 45 14 65 95 0.440

YS03C13 30 48 37 50 16 74 110 0.660

YS03C14 34 52 42 55 16 80 120 0.850

YS03C15 40 58 45 60 16 88 140 1.040
