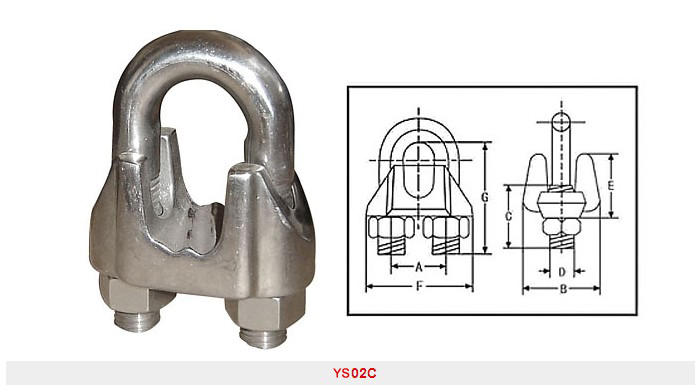

U.S. Type Galy Malleable Wire Rope Clips
Product Code | Size (in) | Dimensions(in) | Weight Each (Kg/pc) | ||||||
A | B | C | D | E | F | G | |||
YS02C01 | 1/16” | 0.38 | 0.45 | 0.45 | 0.15 | 0.45 | 0.69 | 0.65 | 0.0136 |
YS02C02 | 1/8” | 0.50 | 0.56 | 0.50 | 0.18 | 0.50 | 0.94 | 0.81 | 0.0182 |
YS02C03 | 3/16” | 0.56 | 0.63 | 0.56 | 0.25 | 0.56 | 1.06 | 0.94 | 0.0286 |
YS02C04 | 1/4” | 0.75 | 0.75 | 0.75 | 0.31 | 0.75 | 1.31 | 1.19 | 0.0591 |
YS02C05 | 5/16” | 0.75 | 0.75 | 0.84 | 0.31 | 0.84 | 1.44 | 1.31 | 0.0682 |
YS02C06 | 3/8” | 0.88 | 0.88 | 1.00 | 0.38 | 1.00 | 1.63 | 1.63 | 0.0955 |
YS02C07 | 7/16” | 1.06 | 1.06 | 1.19 | 0.44 | 1.19 | 1.88 | 2.00 | 0.1682 |
YS02C08 | 1/2” | 1.06 | 1.06 | 1.19 | 0.44 | 1.19 | 1.88 | 2.00 | 0.1682 |
YS02C09 | 9/16” | 1.25 | 1.28 | 1.38 | 0.50 | 1.38 | 2.09 | 2.31 | 0.2682 |
YS02C10 | 5/8” | 1.25 | 1.28 | 1.38 | 0.50 | 1.38 | 2.09 | 2.31 | 0.2682 |
YS02C11 | 3/4” | 1.31 | 1.56 | 1.56 | 0.56 | 1.56 | 2.38 | 2.56 | 0.3818 |
YS02C12 | 7/8” | 1.63 | 1.81 | 1.81 | 0.63 | 1.81 | 2.88 | 3.06 | 0.5682 |
YS02C13 | 1 | 1.88 | 2.00 | 2.00 | 0.63 | 2.00 | 3.00 | 3.44 | 0.7545 |
YS02C14 | 1-1/8” | 2.00 | 2.06 | 2.75 | 0.75 | 2.75 | 3.38 | 4.00 |
1.1045 |
