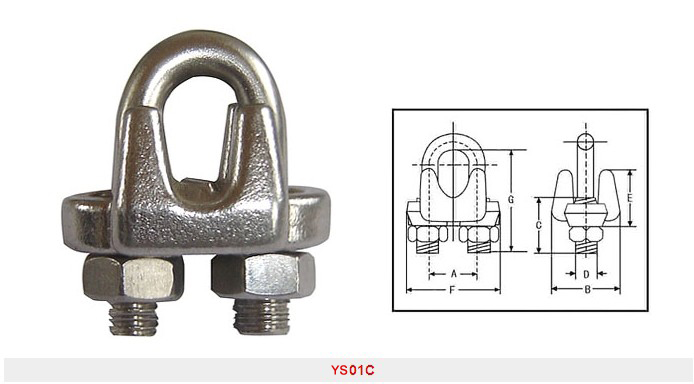

U.S. Type Drop Forged Wire Rope Clips
Product Code | Size(in) | Dimensions(in) | Weight Each (Kg/pc) | ||||
A | G | F | D | E | |||
YS01C01 | 1/8 | 0.47 | 0.72 | 0.94 | 0.22 | 0.41 | 0.002 |
YS01C02 | 3/16 | 0.59 | 0.97 | 1.16 | 0.25 | 0.50 | 0.003 |
YS01C03 | 1/4 | 0.75 | 1.03 | 1.44 | 0.31 | 0.66 | 0.003 |
YS01C04 | 5/16 | 0.88 | 1.38 | 1.69 | 0.38 | 0.72 | 0.004 |
YS01C05 | 3/8 | 1.00 | 1.50 | 1.94 | 0.44 | 0.91 | 0.005 |
YS01C06 | 7/16 | 1.19 | 1.88 | 2.28 | 0.50 | 1.03 | 0.005 |
YS01C07 | 1/2 | 1.19 | 1.88 | 2.28 | 0.50 | 1.13 | 0.005 |
YS01C08 | 9/16 | 1.31 | 2.25 | 2.50 | 0.56 | 1.22 | 0.O06 |
YS01C09 | 5/8 | 1.31 | 2.38 | 2.50 | 0.56 | 1.34 | 0.006 |
YS01C10 | 3/4 | 1.50 | 2.75 | 2.84 | 0.62 | 1.41 | 0.007 |
YS01C11 | 7/8 | 1.75 | 3.12 | 3.16 | 0.75 | 1.59 | 0.008 |
YS01C12 | 1 | 1.88 | 3.50 | 3.47 | 0.75 | 1.78 | 0.009 |
YS01C13 | 1-1/8 | 2.00 | 3.88 | 3.59 | 0.75 | 1.91 | 0.009 |
YS01C14 | 1-1/4 | 2.31 | 4.25 | 4.13 | 0.88 | 2.19 | 0.011 |
YS01C15 | 1-3/8 | 2.38 | 4.63 | 4.19 | 0.88 | 2.31 | 0.011 |
YS01C16 | 1-1/2 | 2.59 | 4.94 | 4.44 | 0.88 | 2.44 | 0.012 |
YS01C17 | 1-5/8 | 2.75 | 5.3l | 4.75 | 1.00 | 2.66 | 0.013 |
YS01C18 | 1-3/4 | 3.06 | 5.75 | 5.28 | 1.13 | 2.94 | 0.014 |
YS01C19 | 2 | 3.38 | 6.44 | 5.88 | 1.25 | 3.28 | 0.015 |
YS01C20 | 2-1/4 | 3.88 | 7.13 | 6.38 | 1.25 | 3.19 | 0.018 |
YS01C21 | 2-1/2 | 4.13 | 7.69 | 6.63 | 1.25 | 3.69 |
0.019 |
