Turnbuckles Frame Type (Forged Steel)
|
|
Nominal |

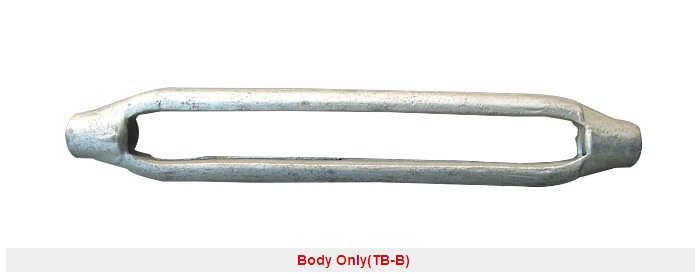

①Body Only |
||||
|
Product Code |
Size (D) |
A |
B |
C |
T．L |
W／Pc |
|
mm |
mm |
mm |
mm |
Ton |
kg |
|
|
YS02B01 |
6 |
100 |
78 |
11.0 |
1.0 |
0.08 |
|
YS02B02 |
8 |
125 |
1OO |
12.5 |
1.2 |
0.15 |
|
YS02B03 |
9 |
150 |
120 |
12.5 |
1.5 |
0.17 |
|
YS02B04 |
12 |
200 |
164 |
18.0 |
2.0 |
0.29 |
|
YS02B05 |
16 |
250 |
202 |
21.5 |
3.O |
0.52 |
|
YS02B06 |
19 |
300 |
250 |
25.0 |
4.0 |
0.85 |
|
YS02B07 |
22 |
325 |
269 |
28.0 |
5.0 |
1.17 |
|
YS02B08 |
25 |
350 |
285 |
32.5 |
6.0 |
1.69 |
|
YS02B09 |
32 |
400 |
310 |
45.0 |
8.0 |
3.51 |
