DIN82101 Shackle
|
Product Code |
Nominal Size |
W．L．L |
Kg／pc |
Dimensions(mm) |
||||||
|
82101 C |

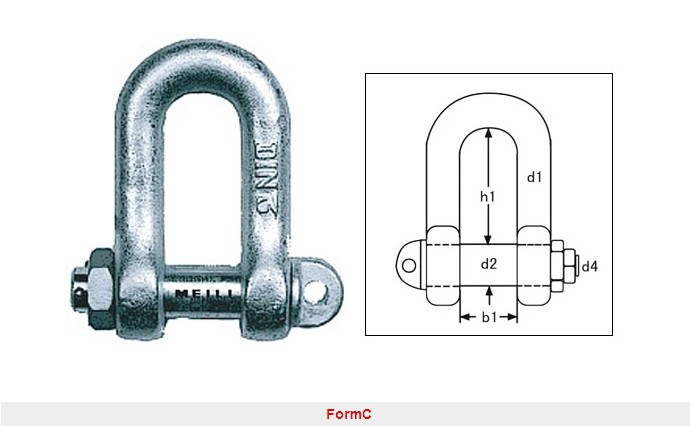

Form C |
(Kgs) |
Form C |
d1 |
d2 |
d3 |
d4 |
d5 |
b2 |
h2 |
|
YS14A01 |
- |
100 |
- |
4 |
5 |
10 |
M 5 |
5 |
7 |
15.50 |
|
YS14A02 |
- |
160 |
- |
5 |
6 |
12 |
M 6 |
6 |
8 |
18.00 |
|
YS14A03 |
- |
250 |
- |
7 |
8 |
16 |
M 8 |
8 |
11 |
24.00 |
|
YS14A04 |
0.4 |
400 |
0.10 |
8 |
10 |
20 |
M10 |
10 |
14 |
30.00 |
|
YS14A05 |
0.6 |
630 |
0.18 |
10 |
12 |
24 |
M12 |
12 |
17 |
36.00 |
|
YS14A06 |
1 |
1000 |
0.39 |
13 |
16 |
32 |
M16 |
15 |
2l |
49.00 |
|
YS14A07 |
1.6 |
1600 |
0.80 |
17 |
20 |
40 |
M20 |
19 |
27 |
61.00 |
|
YS14A08 |
2 |
2000 |
1.08 |
19 |
22 |
44 |
M22 |
21 |
30 |
67.00 |
|
YS14A09 |
2.5 |
2500 |
1.40 |
21 |
24 |
48 |
M24 |
23 |
33 |
73.00 |
|
YS14A10 |
3 |
3150 |
2.00 |
24 |
27 |
54 |
M27 |
26 |
38 |
83.50 |
|
YS14A11 |
4 |
4000 |
2.70 |
27 |
30 |
60 |
M30 |
29 |
42 |
91.00 |
|
YS14A12 |
5 |
5000 |
4.30 |
30 |
36 |
72 |
M36 |
33 |
47 |
111.0 |
|
YS14A13 |
6 |
6300 |
5.80 |
34 |
39 |
78 |
M39 |
37 |
53 |
119.5 |
|
YS14A14 |
8 |
8000 |
8.50 |
38 |
45 |
90 |
M45 |
41 |
60 |
139.5 |
|
YS14A15 |
10 |
10000 |
10.80 |
42 |
48 |
96 |
M48 |
45 |
66 |
147.5 |
|
YS14A16 |
12 |
12500 |
14.40 |
47 |
52 |
104 |
M52 |
50 |
73 |
158.0 |
|
YS14A17 |
16 |
16000 |
20.50 |
52 |
60 |
120 |
M60 |
55 |
81 |
185.0 |
|
YS14A18 |
20 |
20000 |
29.50 |
58 |
68 |
136 |
M68 |
61 |
90 |
211.0 |
|
YS14A19 |
25 |
25000 |
36.00 |
63 |
72 |
144 |
M72 |
67 |
100 |
221.0 |
|
YS14A20 |
32 |
31500 |
49.50 |
70 |
80 |
160 |
M80 |
74 |
110 |
246.0 |
|
YS14A21 |
40 |
40000 |
69.00 |
79 |
90 |
180 |
M90 |
84 |
125 |
276.0 |
