Model and technical parameter:

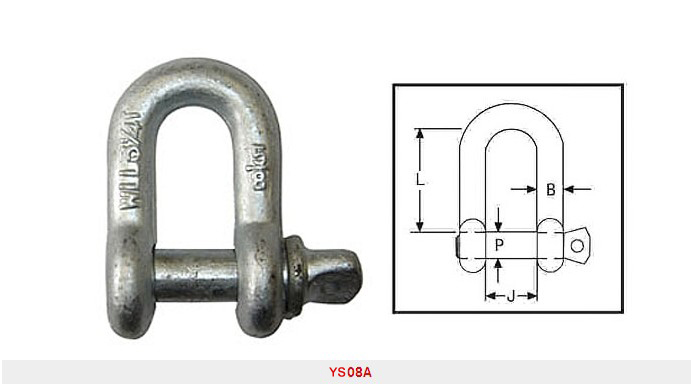

U.S.Eurnpean D Shackle With Screw Pin
Prodnct Code | Pin P(mm) | Body B(mm) | Jaw J(mm) | Inside L(mm) | Breaking Load* | Weight Each(g) |
YS08A01 | 4.0 | 4.0 | 8.0 | 16 | 800Kgs | 7 |
YS08A02 | 5.0 | 5.0 | 10.0 | 20 | 1500Kgs | 13 |
YS08A03 | 6.0 | 6.0 | 13.0 | 25 | 1950Kgs | 24 |
YS08A04 | 8.0 | 8.0 | 16.0 | 32 | 3000Kgs | 53 |
YS08A05 | 9.5 | 9.5 | 19.0 | 38 | 4800Kgs | 97 |
YS08A06 | 11.0 | 11.0 | 22.0 | 44 | 6000Kgs | 152 |
YS08A07 | 12.7 | 12.7 | 26.0 | 52 | 7500Kgs | 237 |
YS08A08 | 16.0 | 14.3 | 29.0 | 58 | 10000Kgs | 450 |
YS08A09 | 19.0 | 16.0 | 32.0 | 64 | 14000Kgs | 585 |
