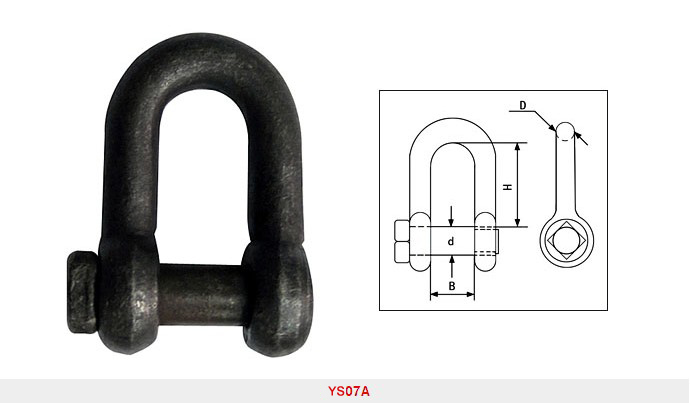

U.S.Trawing Shackle Over Size Pin S-2131
Product Code |
Nominal |
Working Load |
Weight Each |
Dimensions(in.) |
|||||
h |
B |
Diameter |
Tolerance Plus/Minus |
||||||
Pin |
Outside of eye |
Length |
Width |
||||||
YS07A01 |
1/4 |
1/2 |
0.055 |
7/8 |
15/32 |
5/16 |
5/8 |
1/16 |
1/32 |
YS07A02 |
5/16 |
3/4 |
0.064 |
1-1/32 |
1/2 |
3/8 |
3/4 |
1/16 |
1/32 |
YS07A03 |
3/8 |
1 |
0.118 |
1-1/4 |
11/16 |
7/16 |
29/32 |
1/8 |
1/16 |
YS07A04 |
7/l6 |
1-1/2 |
0.136 |
1-13/32 |
23/32 |
1/2 |
1-1/16 |
1/8 |
1/16 |
YS07A05 |
1/2 |
2 |
0.223 |
1-5/8 |
1-3/16 |
5/8 |
1-3/16 |
1/8 |
1/16 |
YS07A06 |
5/8 |
3-1/4 |
0.500 |
2 |
1-1/16 |
3/4 |
1-9/16 |
1/8 |
1/16 |
YS07A07 |
3/4 |
4-3/4 |
1.000 |
2-3/8 |
1-1/4 |
7/8 |
1-7/8 |
1/4 |
1/16 |
YS07A08 |
7/8 |
6-1/2 |
1.491 |
2-13/16 |
1-7/16 |
1 |
2-1/8 |
1/4 |
1/16 |
