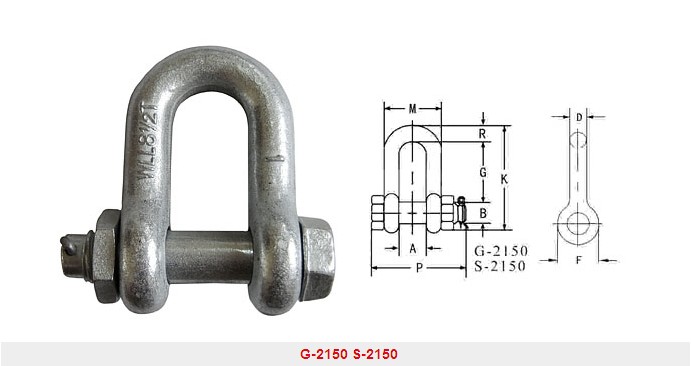

U.S.Bolt Type Anchor & Chain Shackles
|
Product Code |
Weight Each(kg) |
Nominal Size (in.) |
Working Load Limit |
Dimensions(mm) |
|||||||||||
|
2150 |
|
2150 |
(t) |
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
P |
|
|
YS06A01 |
- |
3/16 |
1/3 |
9.65 |
6.35 |
22.4 |
4.85 |
15.2 |
14.2 |
- |
37.3 |
24.9 |
- |
32.77 |
|
|
YS06A02 |
0.06 |
1/4 |
1/2 |
11.90 |
7.85 |
28.7 |
6.35 |
19.8 |
15.5 |
19.05 |
46.7 |
32.5 |
15.49 |
39.62 |
|
|
YS06A03 |
0.10 |
5/16 |
3/4 |
13.50 |
9.65 |
31.0 |
7.85 |
21.3 |
19.1 |
25.40 |
53.0 |
37.3 |
19.05 |
46.23 |
|
|
YS06A04 |
0.15 |
3/8 |
1 |
16.80 |
11.20 |
36.6 |
9.65 |
26.2 |
23.1 |
30.99 |
63.0 |
45.2 |
23.11 |
55.12 |
|
|
YS06A05 |
0.22 |
7/16 |
1-1/2 |
19.10 |
12.70 |
42.9 |
11.20 |
29.5 |
26.9 |
36.09 |
74.0 |
51.5 |
41.15 |
63.75 |
|
|
YS06A06 |
0.34 |
1/2 |
2 |
20.60 |
16.00 |
47.8 |
12.70 |
33.3 |
30.2 |
41.04 |
83.5 |
58.5 |
45.97 |
71.12 |
|
|
YS06A07 |
0.67 |
5/8 |
3-1/4 |
26.90 |
19.10 |
60.5 |
16.00 |
42.9 |
38.1 |
50.80 |
106.0 |
74.5 |
58.67 |
89.66 |
|
|
YS06A08 |
1.14 |
3/4 |
4-3/4 |
31.80 |
22.40 |
71.5 |
19.10 |
51.0 |
46.0 |
60.45 |
126.0 |
89.0 |
69.85 |
103.38 |
|
|
YS06A09 |
1.74 |
7/8 |
6-1/2 |
36.60 |
25.40 |
84.0 |
22.40 |
58.0 |
53.0 |
71.37 |
148.0 |
102.0 |
81.03 |
119.63 |
|
|
YS06A010 |
2.52 |
1 |
8-1/2 |
42.90 |
28.70 |
95.5 |
25.40 |
68.5 |
60.5 |
81.03 |
167.0 |
119.0 |
93.73 |
134.87 |
|
|
YS06A011 |
3.45 |
1-1/8 |
9-1/2 |
46.00 |
31.80 |
108.0 |
28.70 |
74.0 |
68.5 |
90.93 |
190.0 |
131.0 |
103.12 |
149.86 |
|
|
YS06A012 |
4.90 |
1-1/4 |
12 |
51.50 |
35.10 |
119.0 |
31.80 |
82.5 |
76.0 |
100.08 |
210.0 |
146.0 |
115.06 |
165.35 |
|
|
YS06A013 |
6.24 |
1-3/8 |
13-1/2 |
57.00 |
38.10 |
133.0 |
35.10 |
92.0 |
84.0 |
111.25 |
233.0 |
162.0 |
127.00 |
183.13 |
|
|
YS06A014 |
8.39 |
1-1/2 |
17 |
60.50 |
41.40 |
146.0 |
38.10 |
98.5 |
92.0 |
122.17 |
254.0 |
175.0 |
136.05 |
196.34 |
|
|
YS06A015 |
14.20 |
1-3/4 |
25 |
73.00 |
51.00 |
178.0 |
44.50 |
127.0 |
106.0 |
146.05 |
313.0 |
225.0 |
162.05 |
229.87 |
|
|
YS06A016 |
21.20 |
2 |
35 |
82.50 |
57.00 |
197.0 |
51.00 |
146.0 |
122.0 |
171.45 |
348.0 |
253.0 |
184.15 |
264.41 |
|
|
YS06A017 |
38.60 |
2-1/2 |
55 |
105.00 |
70.00 |
267.0 |
66.50 |
184.0 |
145.0 |
203.20 |
453.0 |
327.0 |
238.25 |
344.42 |
|
|
YS06A018 |
56.00 |
3 |
85 |
127.00 |
82.50 |
330.0 |
76.00 |
200.0 |
165.0 |
215.90 |
546.0 |
365.0 |
279.40 |
419.10 |
|
|
YS06A019 |
- |
3-1/2 |
120 |
133.00 |
95.50 |
372.0 |
92.00 |
229.0 |
203.0 |
- |
626.0 |
419.0 |
- |
482.60 |
|
|
YS06A020 |
- |
4 |
150 |
140.00 |
108.00 |
368.0 |
104.00 |
254.0 |
229.0 |
- |
653.0 |
468.0 |
- |
501.65 |
|
