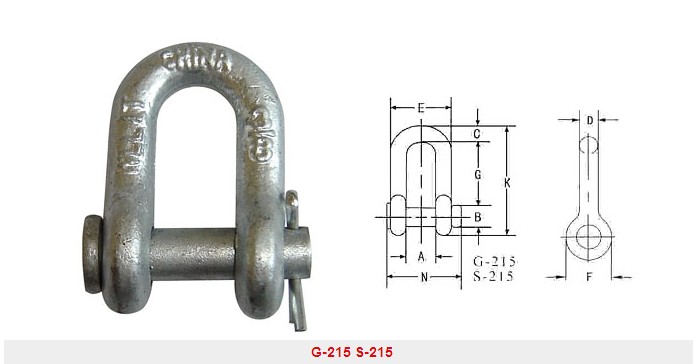

U.S.Round Pin Chain Shackles
|
Product Code |
Weight Each(kg) |
Nominal Size(in.) |
WLL (t) |
Dimensions(mm) |
||||||||
|
215 |
215 |
A |
B |
C |
D |
E |
F |
G |
H |
N |
||
|
YS04A01 |
0.05 |
1/4 |
1/2 |
11.9 |
7.85 |
28.7 |
6.35 |
19.8 |
15.5 |
32.5 |
46.7 |
34.0 |
|
YS04A02 |
0.08 |
5/16 |
3/4 |
13.5 |
9.65 |
31.0 |
7.85 |
21.3 |
19.1 |
37.3 |
53.0 |
40.4 |
|
YS04A03 |
0.13 |
3/8 |
1 |
16.8 |
11.20 |
36.6 |
9.65 |
26.2 |
23.1 |
45.2 |
63.0 |
47.2 |
|
YS04A04 |
0.20 |
1/2 |
2 |
19.1 |
12.70 |
42.9 |
11.20 |
29.5 |
26.9 |
51.5 |
74.0 |
54.0 |
|
YS04A05 |
0.27 |
5/8 |
3-1/4 |
20.6 |
16.00 |
47.8 |
12.70 |
33.3 |
30.2 |
58.5 |
83.5 |
60.5 |
|
YS04A06 |
0.57 |
1 |
8-1/2 |
26.9 |
19.10 |
60.5 |
16.00 |
42.9 |
38.1 |
74.5 |
106.0 |
74.0 |
|
YS04A07 |
1.20 |
1-1/4 |
12 |
31.8 |
22.40 |
71.5 |
19.10 |
51.0 |
46.0 |
89.0 |
126.0 |
87.0 |
|
YS04A08 |
1.43 |
1-1/2 |
17 |
36.6 |
25.40 |
84.0 |
22.40 |
58.0 |
53.0 |
102.0 |
148.0 |
96.5 |
|
YS04A09 |
2.15 |
1-3/4 |
25 |
42.9 |
28.70 |
95.5 |
25.40 |
68.5 |
60.5 |
119.0 |
167.0 |
115.0 |
|
YS04A10 |
3.06 |
2 |
35 |
46.0 |
31.80 |
108.0 |
29.50 |
74.0 |
68.5 |
131.0 |
190.0 |
130.0 |
